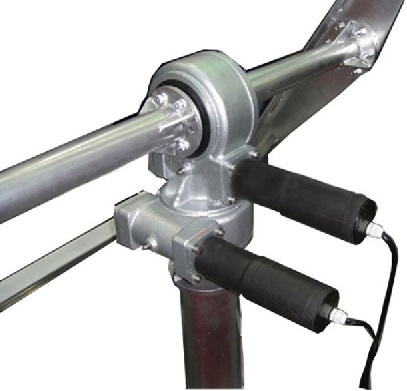

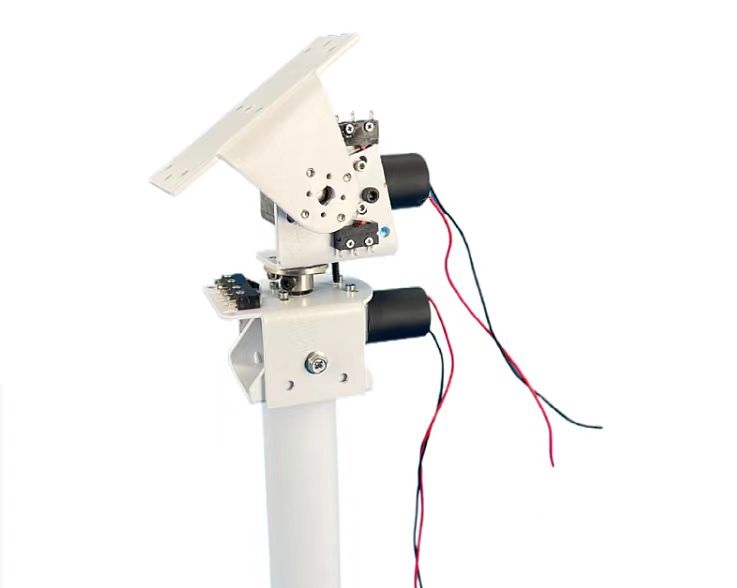

Dual Axis Drive With 24V DC Motor Solar Tracking System” describes a solar tracking system that uses a 3-inch swing diameter dual-axis drive device and a 24V DC motor. Such a system is mainly used to improve the power generation efficiency of solar panels. By precisely controlling the orientation of the panels, they can track the position of the sun in real time, thereby maximizing the absorption of solar energy.
Specifically, the dual-axis drive allows the solar panels to rotate in two directions: a horizontal azimuth angle to track the sun’s movement in the east-west direction; and a vertical tilt angle to track the sun’s movement in the east-west direction. The height of the sun changes in the north and south directions. By constantly adjusting these two angles, the solar tracking system ensures that the panels always face the sun, thus maximizing solar absorption.
The 24V DC motor serves as the power source of the drive device, providing the necessary torque and speed for the entire system. This kind of motor usually has the characteristics of high efficiency, stability, and low noise, and can meet the needs of long-term and continuous operation of solar tracking systems.
Parameters:
Material 42CrMo,50Mn
Output Torque 400 N.m
Tilting Moment Torque 1.1K Nm.
Holding Torque 2K N.m
Static Axial Rating 30 KN
Static Radial Rating 16.6KN
Dynamic Axial Rating 9.6KN
Dynamic Radial Rating 8.4KN
Gear Ratio 62:1
Efficiency 30%
Product Advantage:
Dual axis slewing drive worm gear gearbox for solar tracker system with solar tracker controller.
Higher tracking precision, IP class 65
Application:
PV, CPV dual axis solar tracking system worm gear slewing ring,3-8 square meters solar panels
Other options:
